Technical information
Available specifications and configuration

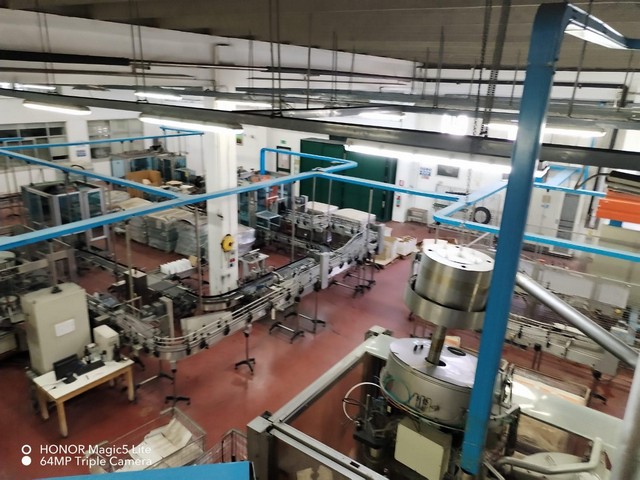

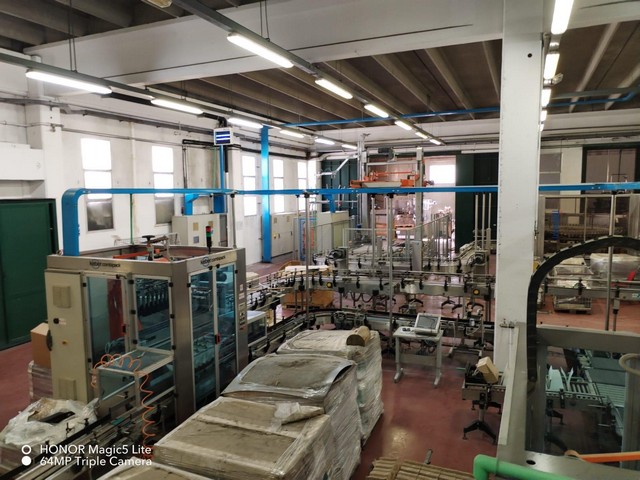

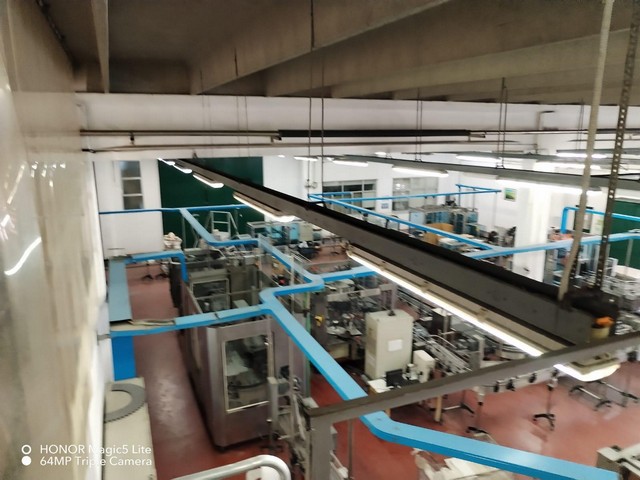

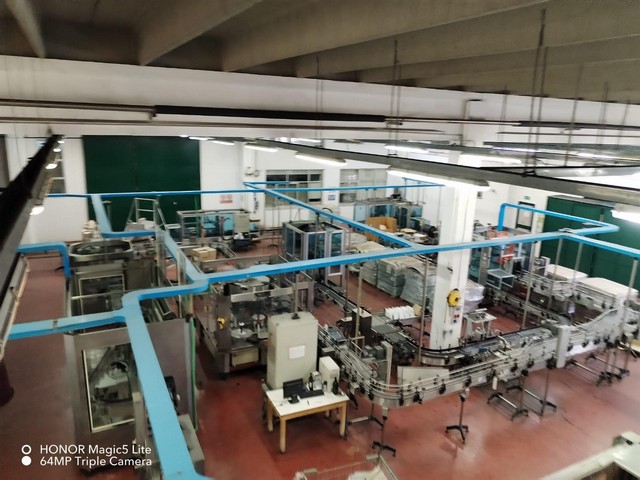

Used Complete Bottling Line for Wine 12.000 bph:
Speed: 12.000 BPH with bottles of 0.75 L

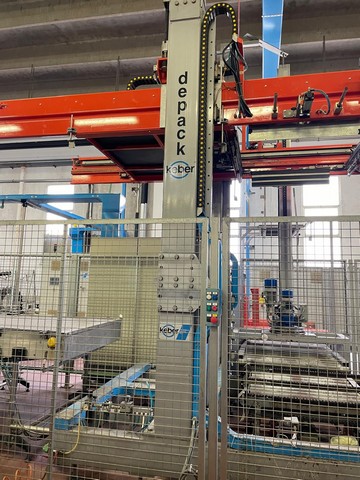

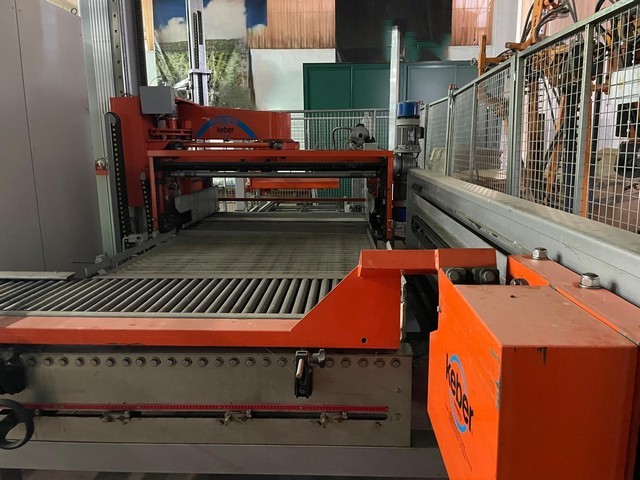

Depalletizer Keber:
Model: Depack 92
Year: 2001
Speed: 65 layers/hour
Pallet Storage
Inter-layer system
Dimension pallet 1000 mm x 1200 mm x 1400 mm
Maximum height for pallet 2300 mm

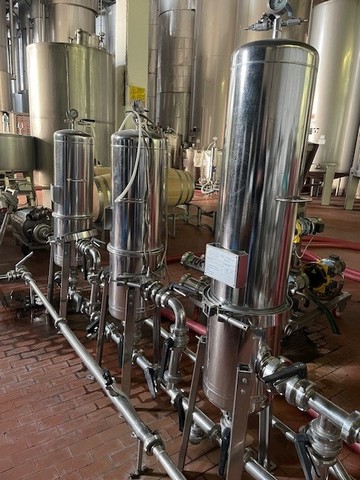

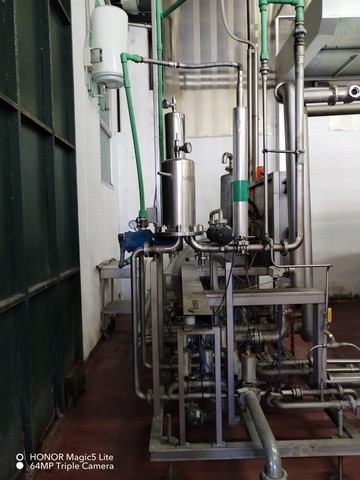

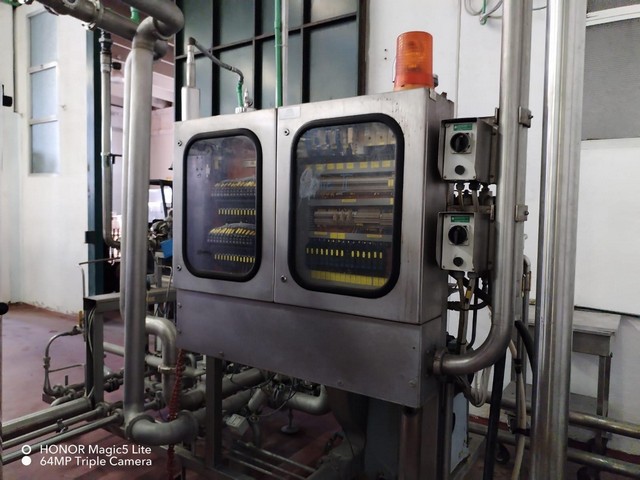

Microfiltration Pall:
Model: Saso64gnw80j-it
Year: 1998

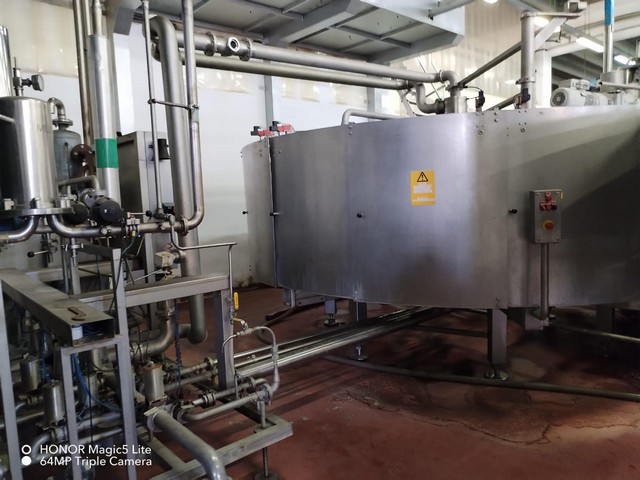

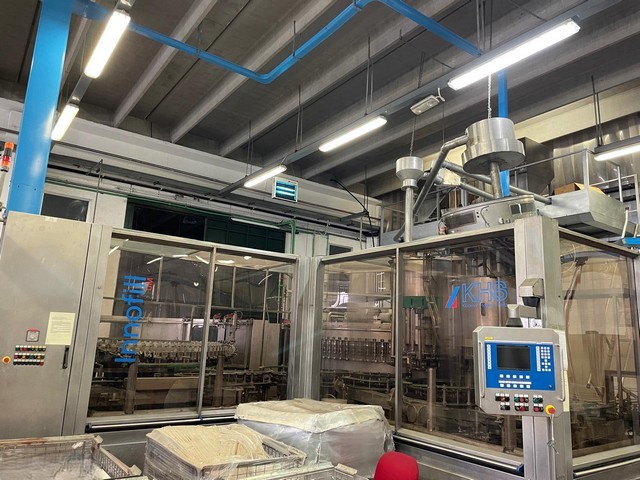

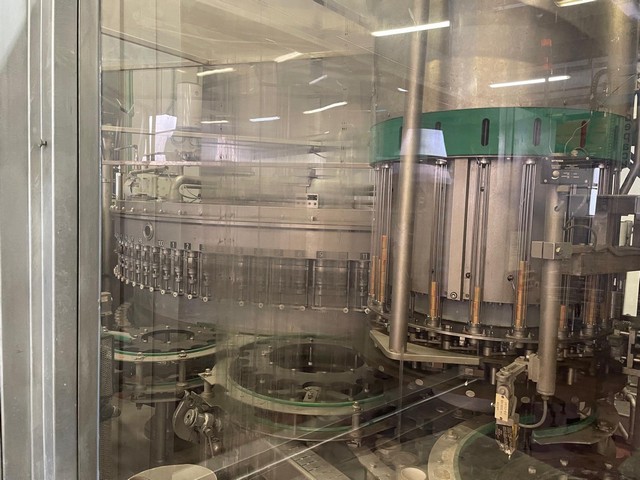

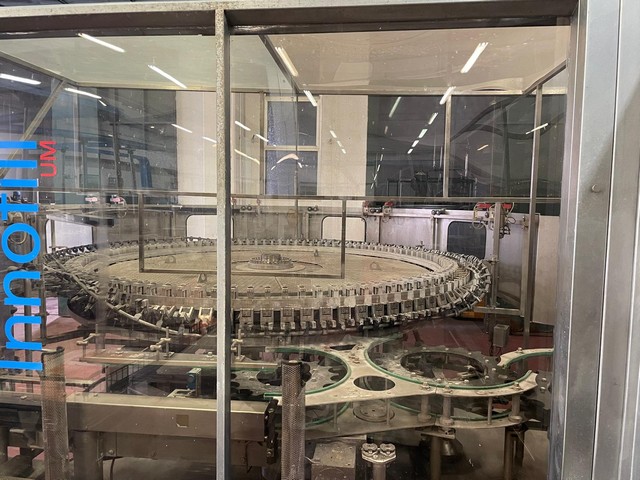

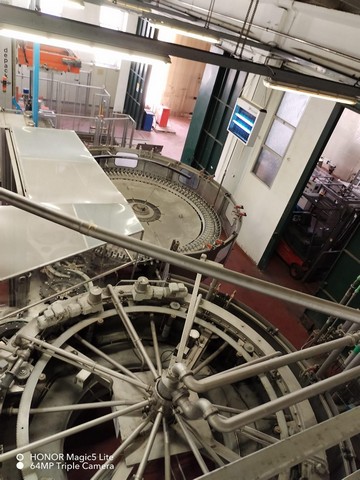

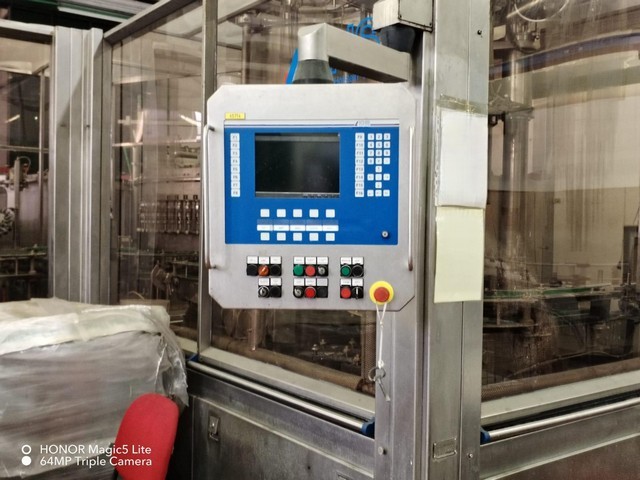

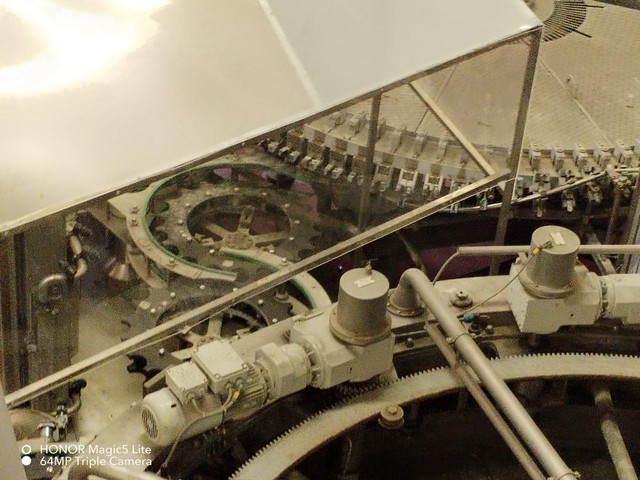

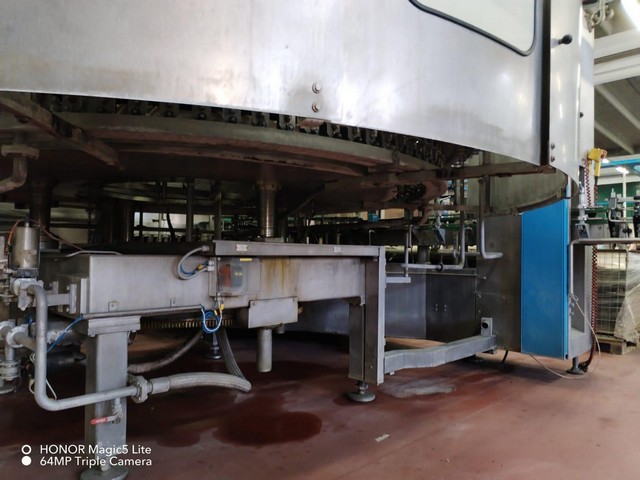

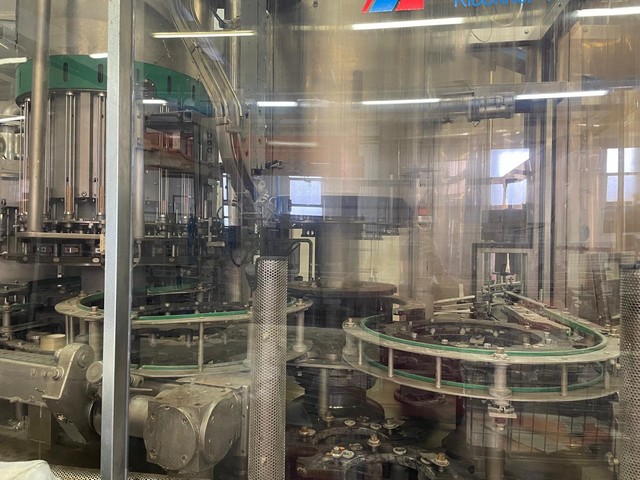

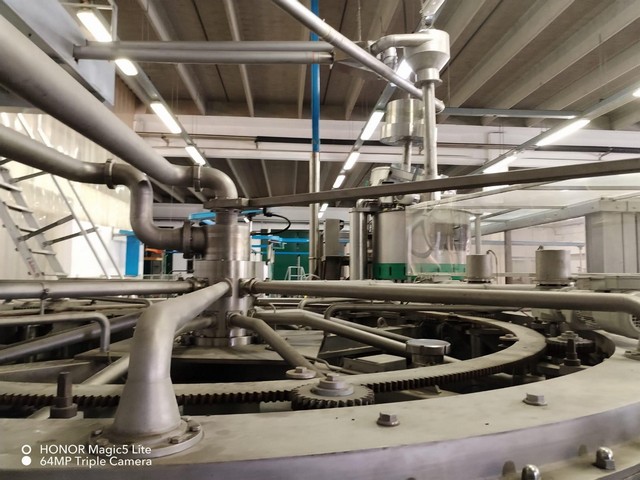

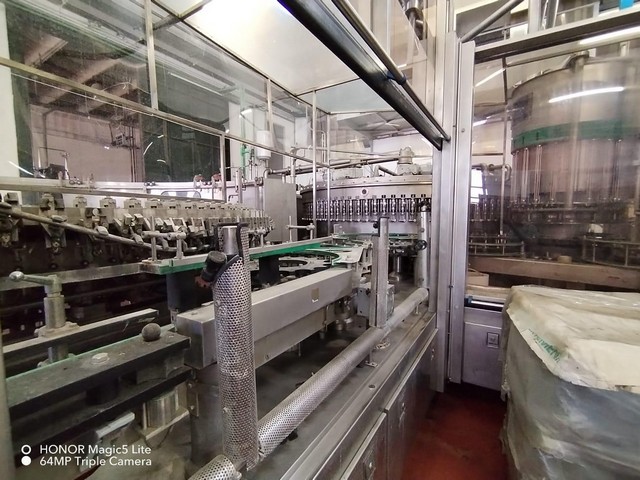

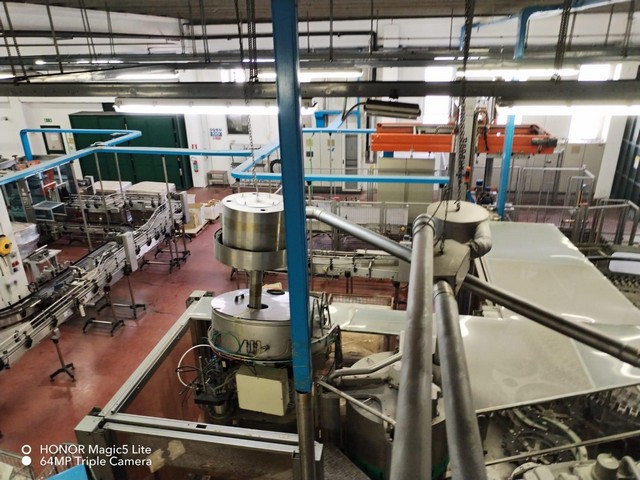

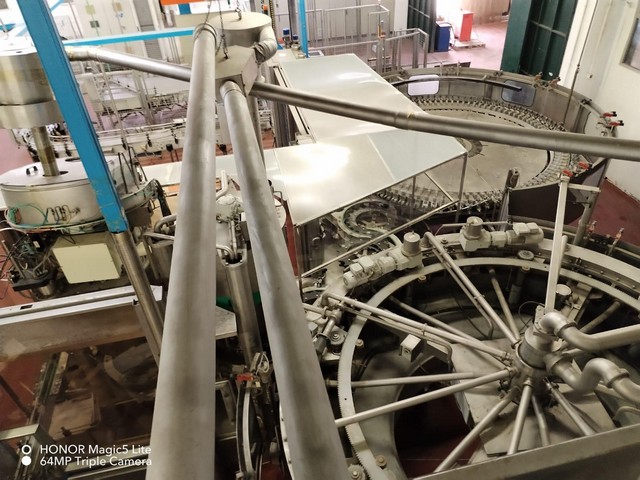

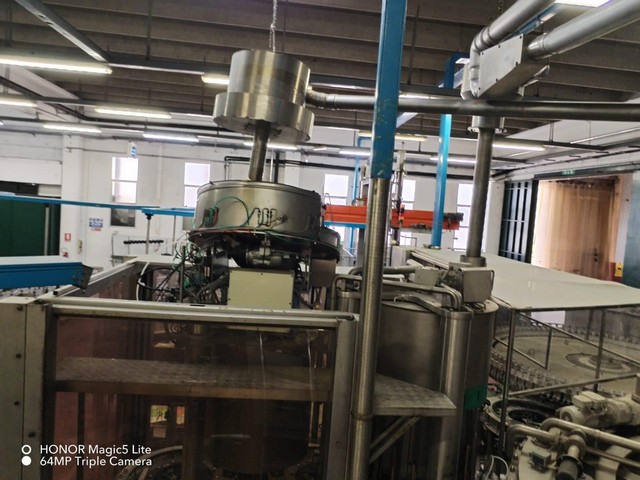

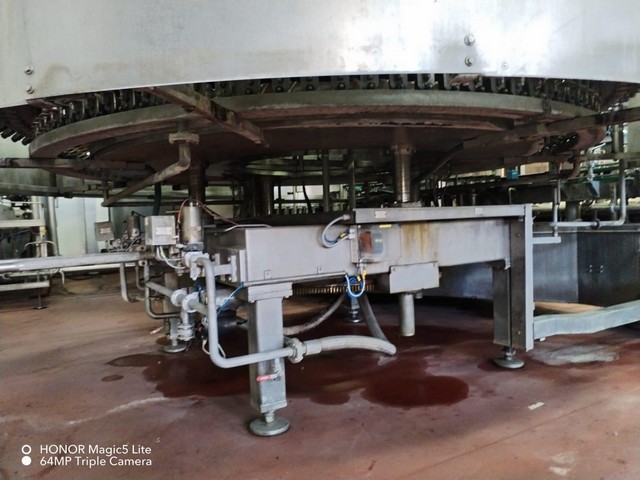

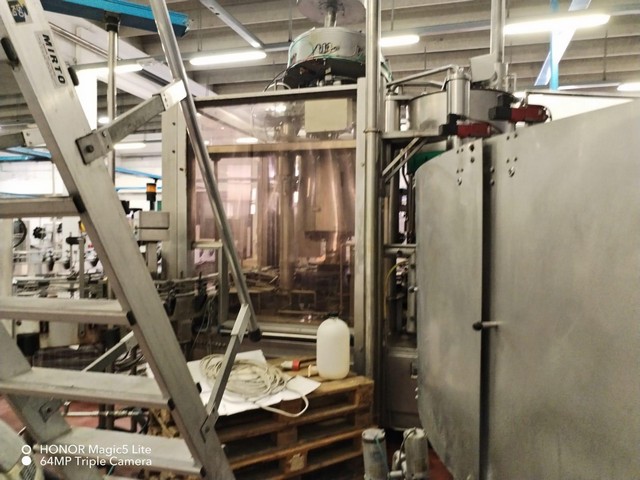

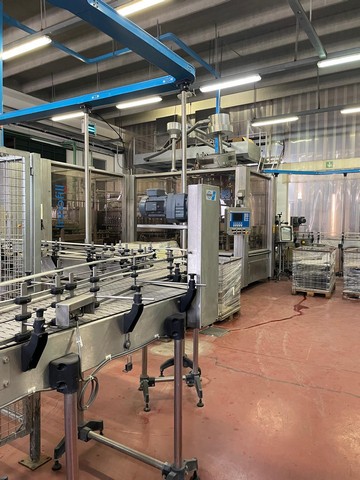

Triblock KHS
Model: Innofill um
Year: 2001
Clockwise directions
Speed: up to 33.000 BPH
Triblock composed of
Rinser
100 clamps
Automatic adjustment height
Fix nozzles
Double treatment
Water and Nitrogen

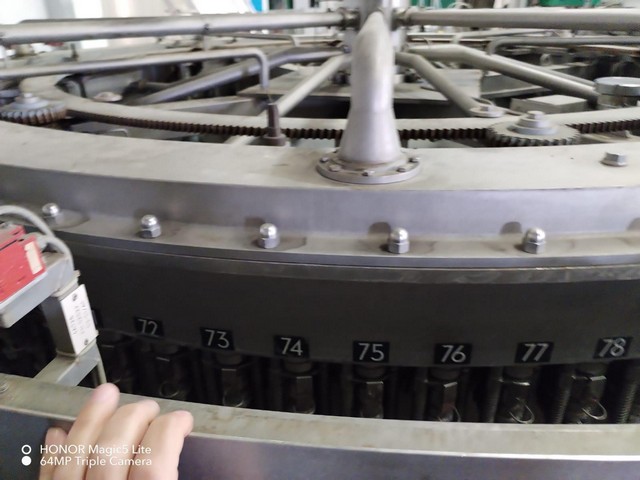

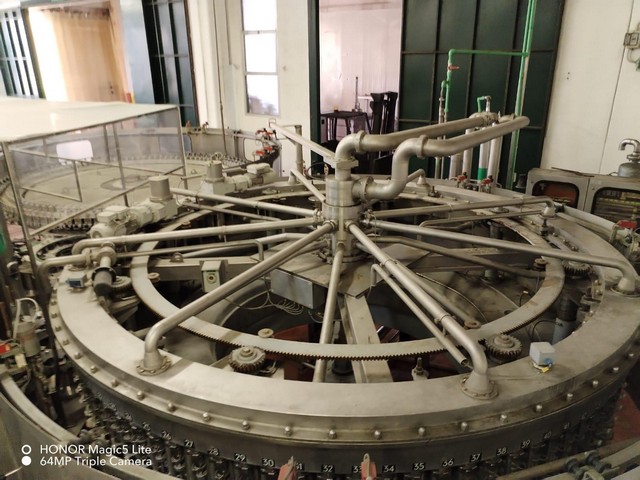

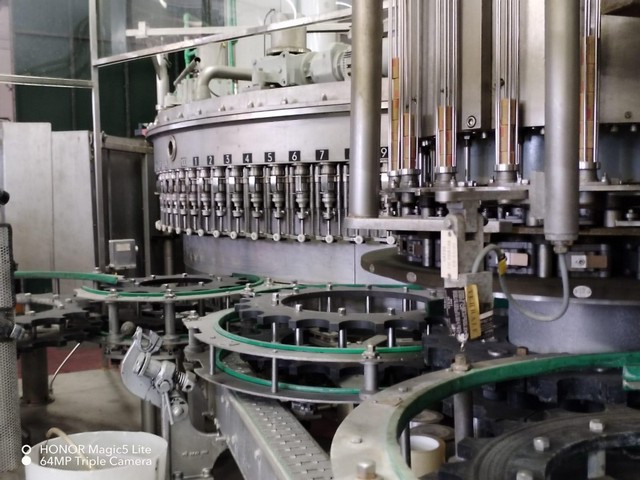

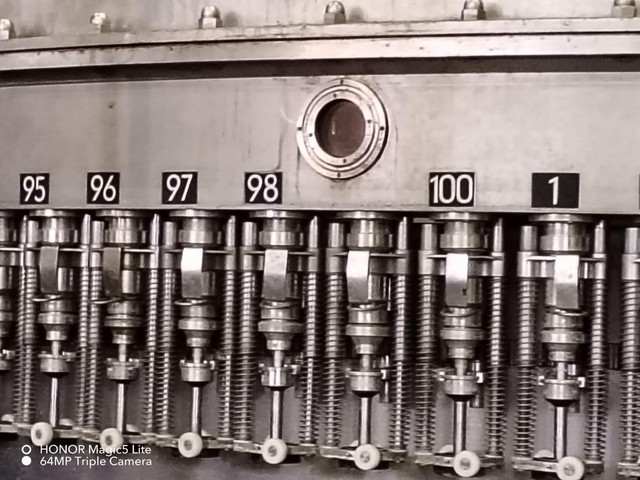

Filler
100 valves by gravity
Automatic adjustment height tank
Mechanicals valves
Pre-evacuation

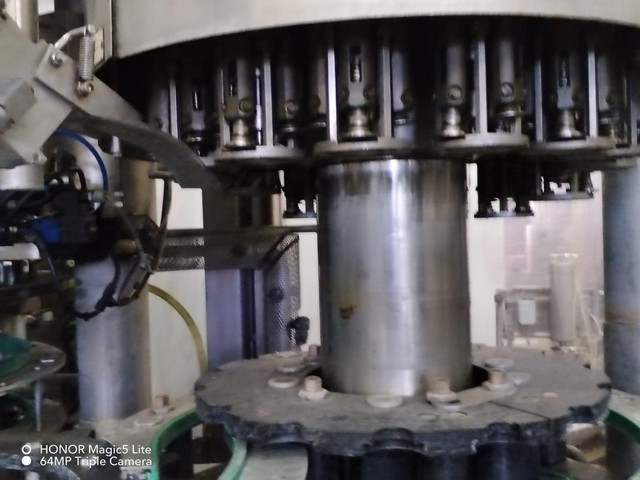

Capper
20 heads for natural straight corks
Dimension of corks: 25 mm Ø x 48 mm H
Automatic adjustment height
Vacuum before capping
Inert gas injection system before capping
Stelvin capper
15 heads
Automatic adjustment height
Nr. 2 pneumatic cap elevators

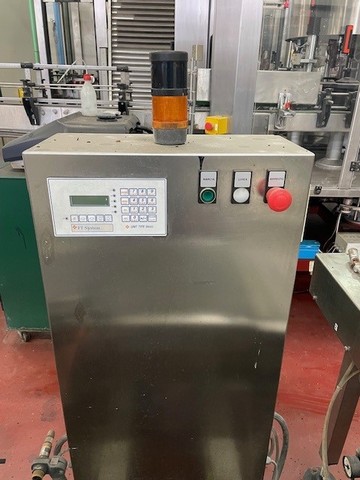

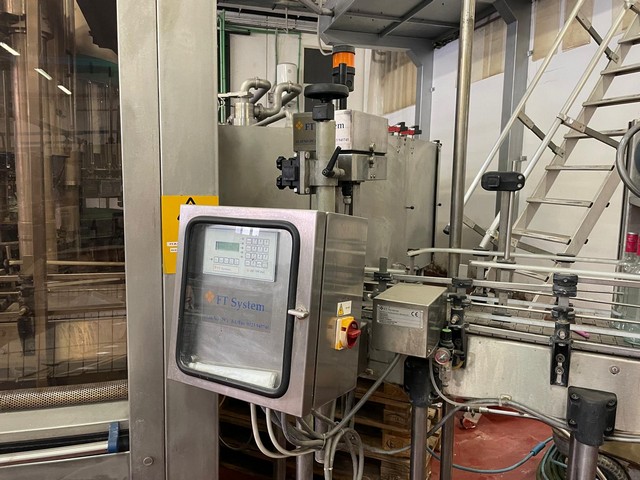

3 Inspecrtor FT System:
Model: clx-300/ce333
Year: 2001
Control presence
nr. 3 ejectors on conveyor
1 after Triblock for levels and cap/cork
1 after capsuling for capsules
1 after labeller for lables
Capsules distributor WBeer:
Year: 2001
Long range storage
Suitable for PVC capsules

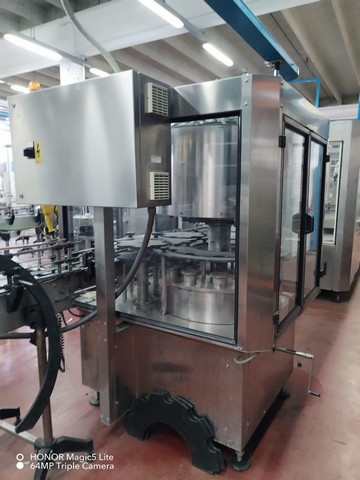

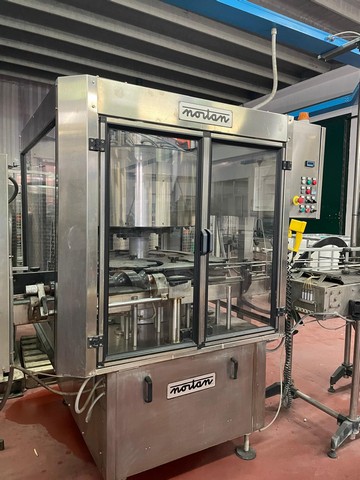

Nortan Capsuling machine for PVC
Model: Termocap 12
Year: 2002
12 heads
Manual adjustment height

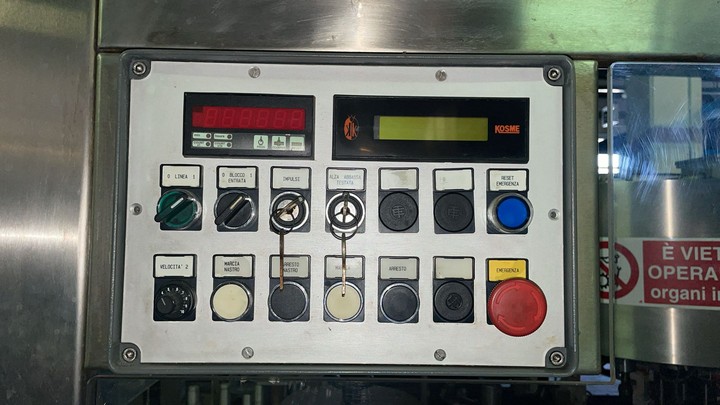

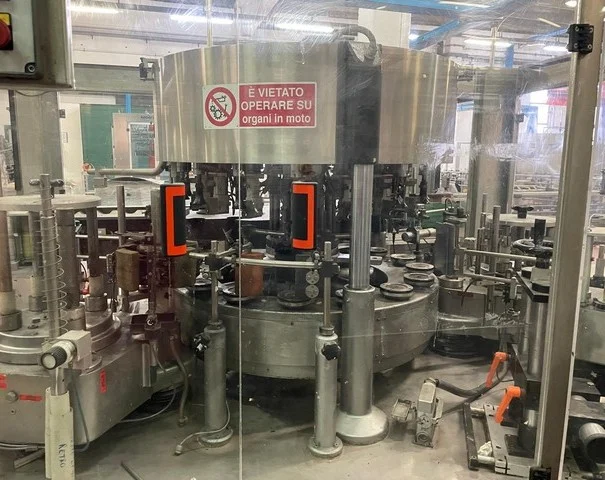

Labeller Kosme:
Modello: Top.Star
Year: 1998
Counterclockwise directions
Automatic adjustment height
16 Heads
Mechanical movement plates
4 station (2 cold glue; 2 adhesive)
Suitable to apply
Front and back (adhesive)
Front and back (glue)
Optical centering by photocells
Additional ironing on exit

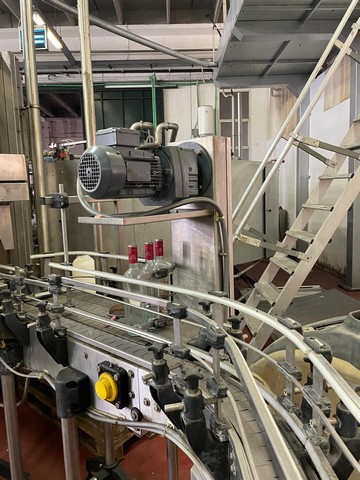

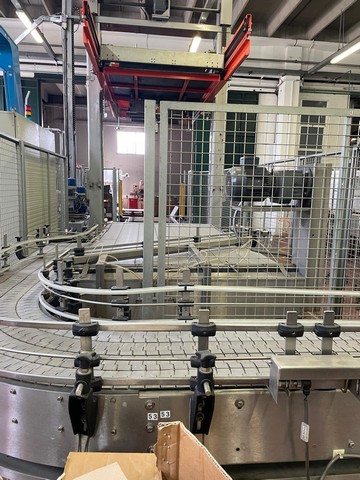

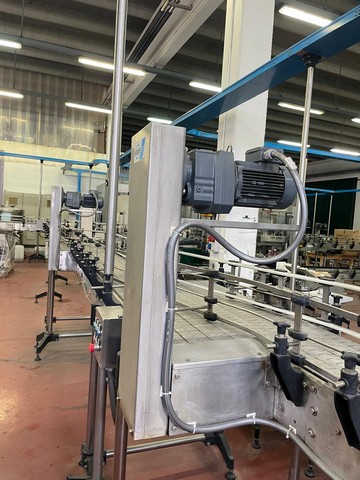

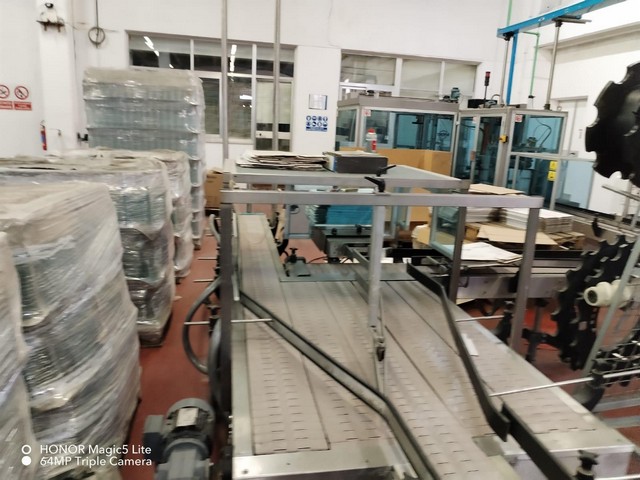

Conveyors bottles and cartons Keber:
Year: 2001

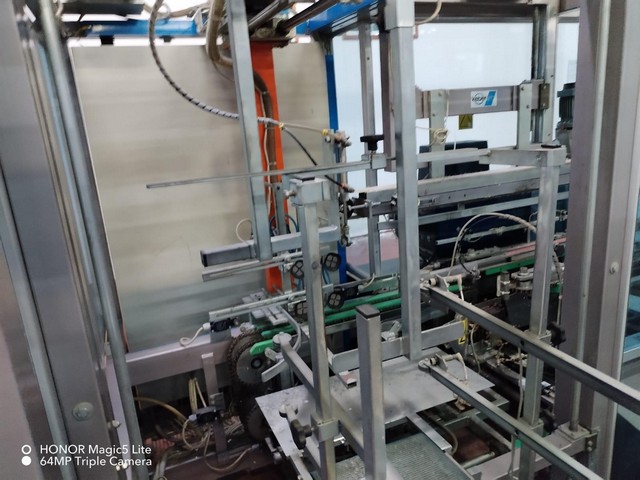

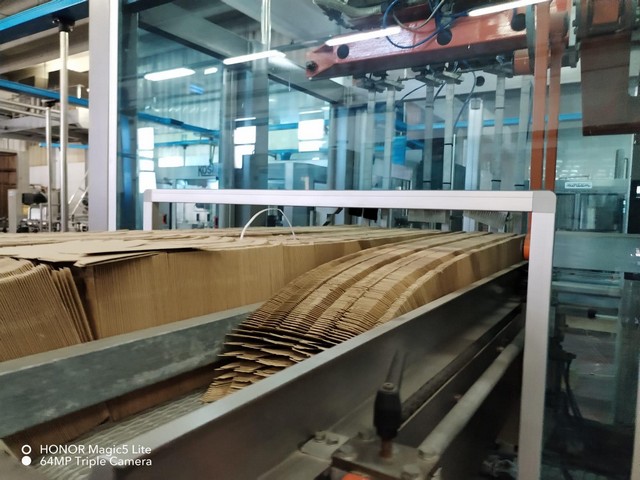

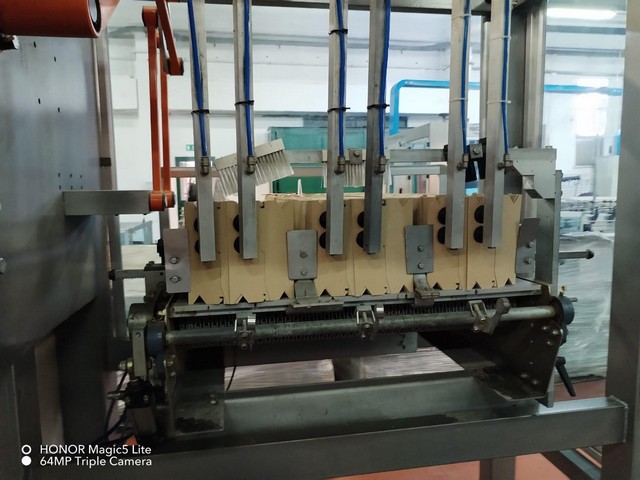

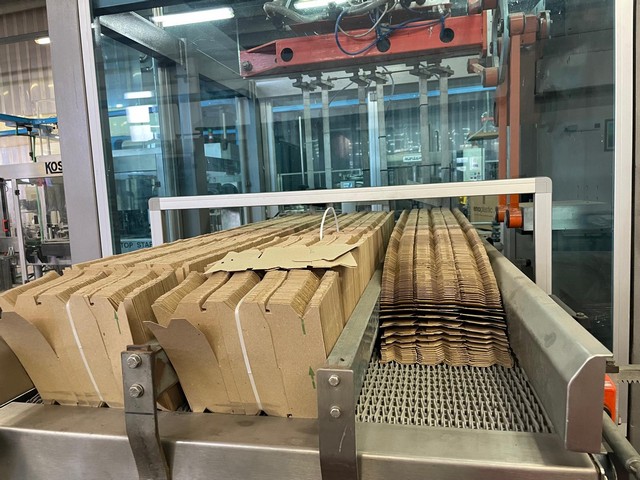

Case Erector Keber:
model: Formapack 3 s
Year: 1997
Cold glue
Gluer Nordson serie 3400v

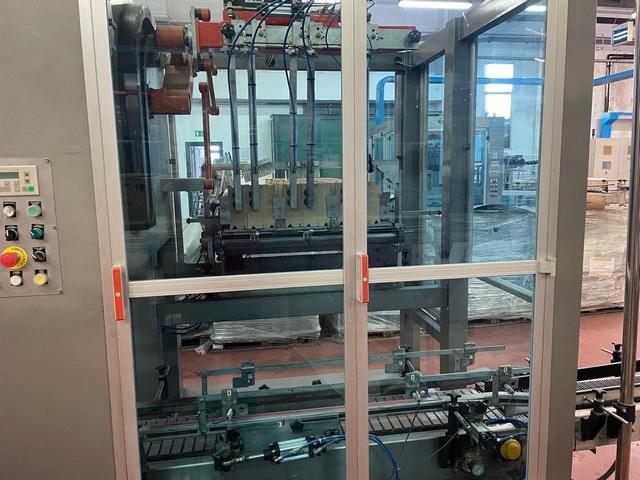

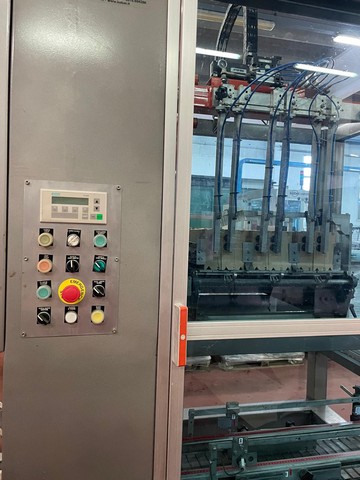

Case Packer Keber:
Model: Incapack
Year: 1997
Speed: 400 CPH
Single registrable head
Sockets: 30
Suitable for
4 or 5 cartons 3X2 or
2 cartons 4X3

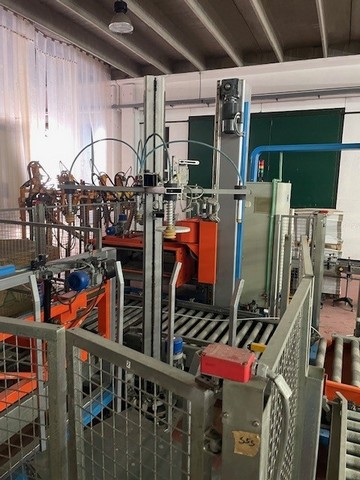

Put hive Keber:
Model: Insertpack
Year: 2001
Heads: 3
Suitable for 3 cartons 3X2 or 2 cartons 4X3

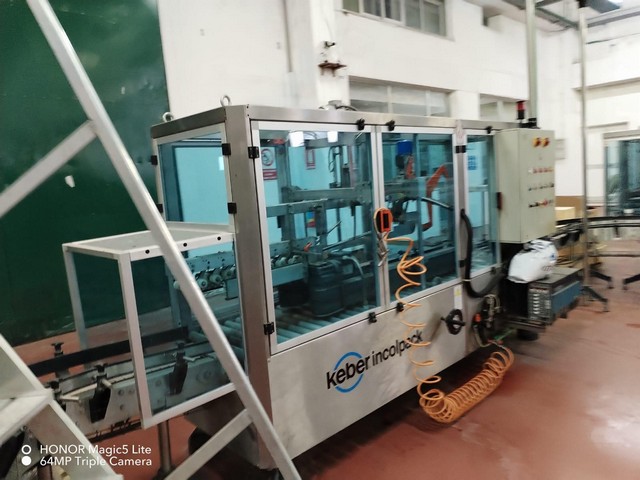

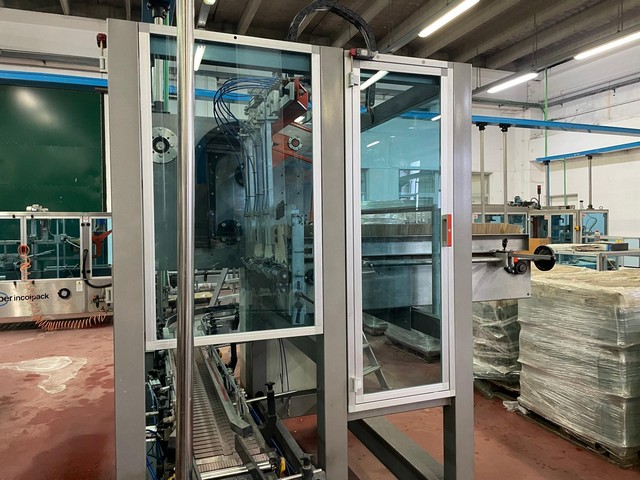

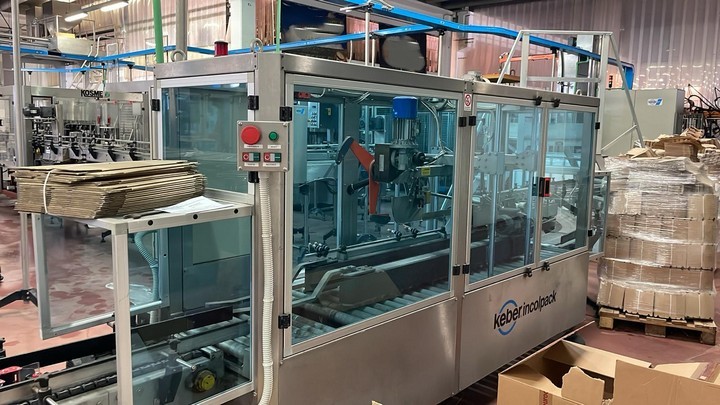

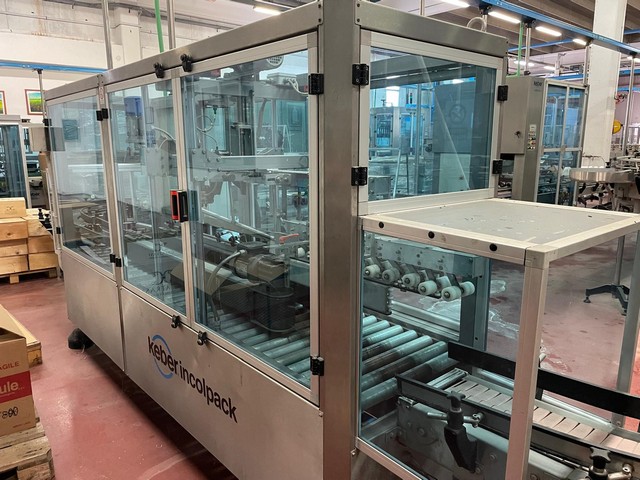

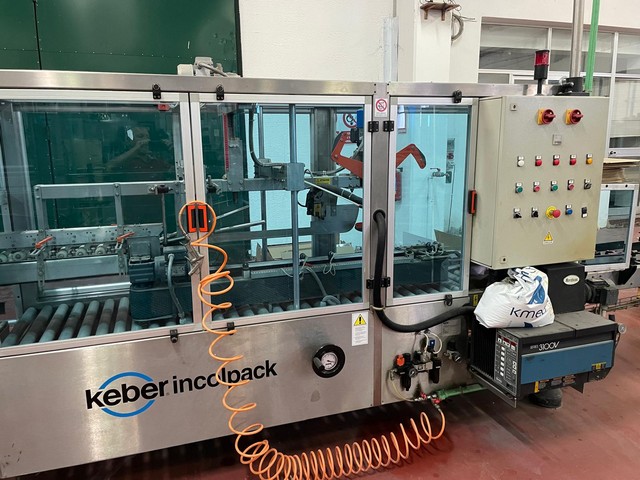

Carton closing Keber:
Model: Incolpack
Year: 1997
Gluer Nordson serie 3400v

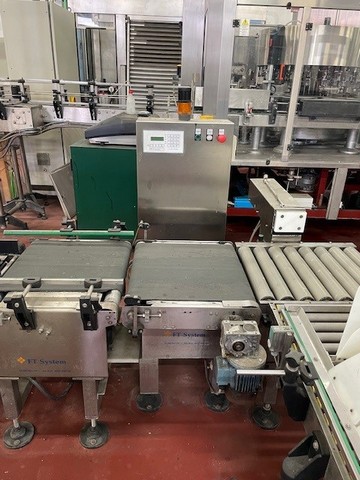

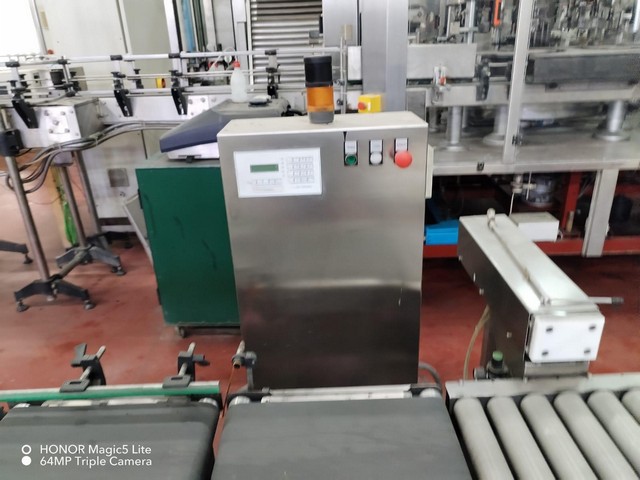

Box weigher Ft System:
Model: pco 150 nx
Year: 2001
Eject system on conveyor

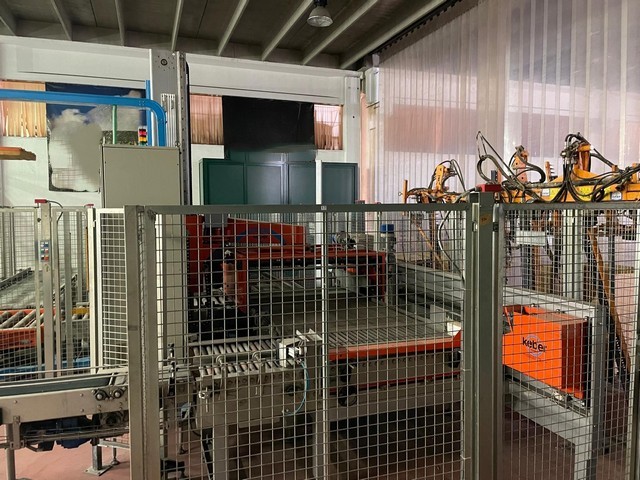

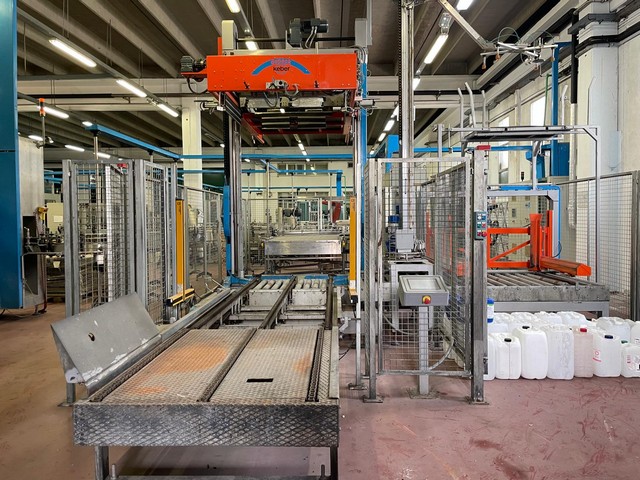

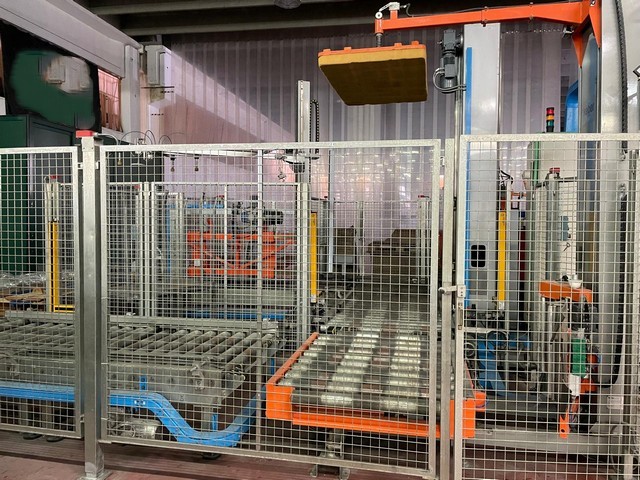

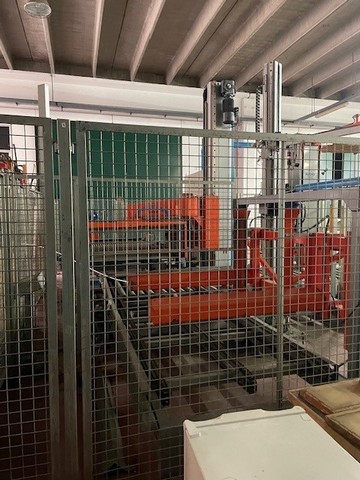

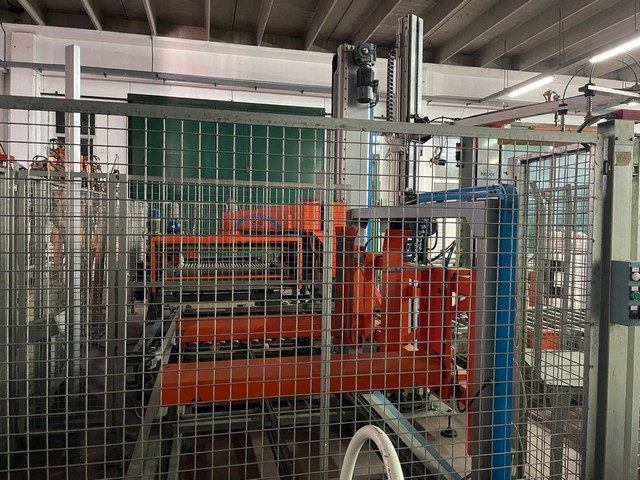

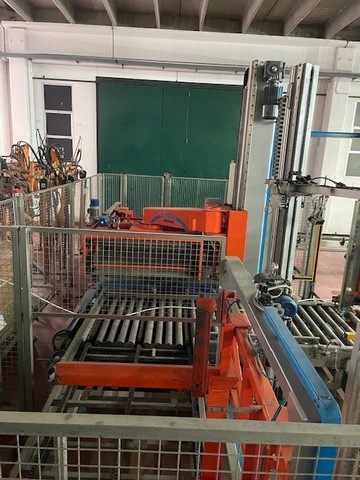

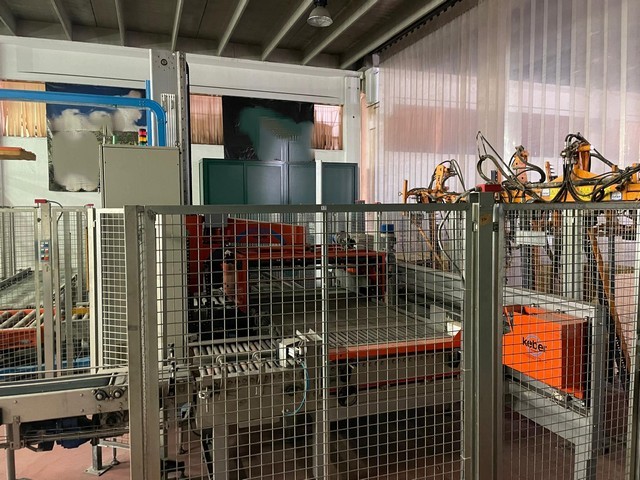

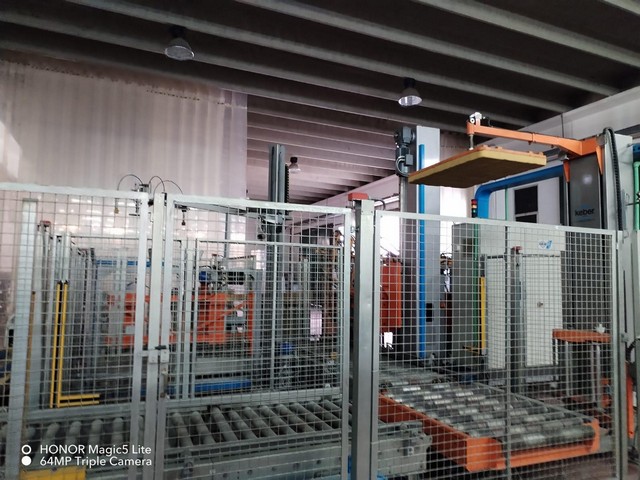

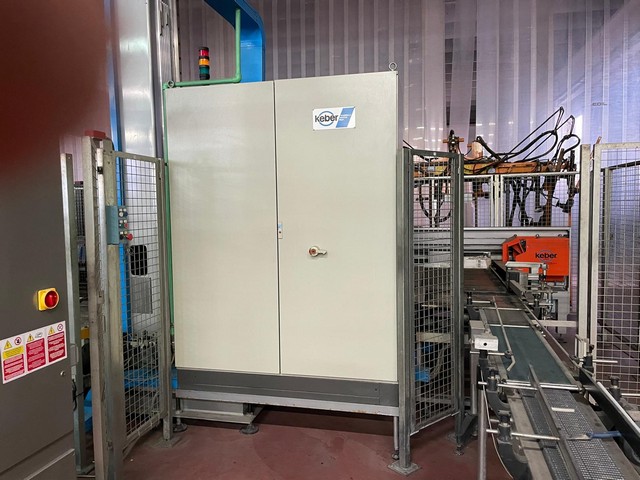

Palletizer Keber:
Model: pal mec arm 98
Year: 2001
Speed: 1.5 Layer/minute
Pallet storage
Interlayer system
Maximum height pallet 2300 mm

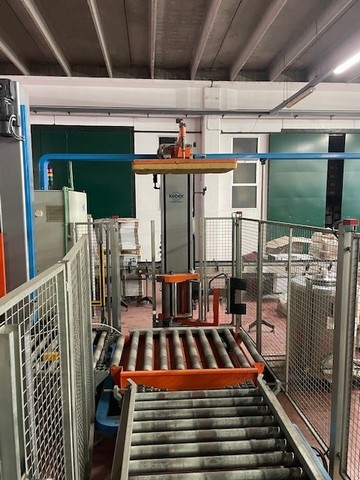

Shrink pallet Keber:
Model: Volpack 095
Year: 2001
Speed: 19 Pallet/hour
Maximum workable pallet 2200 mm
Rotating table
Code: NP 666
