Technical information
Available specifications and configuration
Used Complete PET Bottling Line Still Water 18.000 bph:
Speed: 18,000 bph
Brands: krones, khs, berchi
Year: 2002, 2004, 2008
Beverages filled: still mineral water
Bottle sizes: 250 ml, 500 ml, 600 ml, 750 ml, 1.5 l, 2.0 l
Cap types: pco 1810, sports cap
Main components of the pet line:
Khs blomax 6 series pet blowing machine (2002)
Smi sr8 pet blowing machine (2000)
Number of cavities: 8
Nova frigo chiller for both khs and smi pet blowers
Ateliers francois hp compressor (2008)
Lanfranchi pet bottle unscrambler (2004)
Air conveyor system

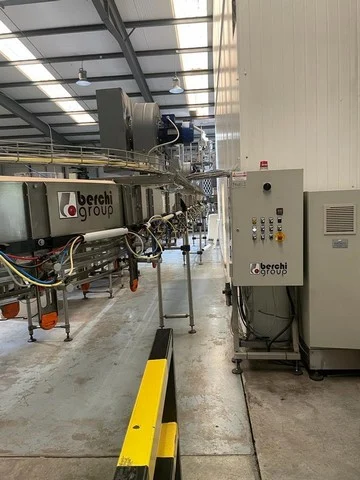

Monobloc berchi 60/50/15 (2004)
Rinser with 60 grippers
Filler with 50 valves
Capper with 15 heads
Cip (clean in place) system ghirardi palo (2004)
Krones labeling machine (2004)
Bottle conveyor system with accumulation table up to the labeler
Fmt antares palletizer (low level)
year: 2018
Automatic layer-pad deposit system with floor-mounted storage unit
Empty pallets storage unit
Pallets handling on belt conveyors
Loto system
15″ touch screen
Atlanta omega pallet wrapper (rotary ring type)
year: 2018
5.7" touch screen operating panel with 7 programs
Adjustable rotation speed facilitated by frequency inverter: max 65 rpm
Standard wrapping height: 2000 mm
Adjustable spool carriage speed facilitated by inverter: from 1.3 to 5.4 m/min
Total installed power: 8 kw
Standard voltage: 400 v - 50/60 hz – 3 ph + n + t
Electrical and motor protection system: ip 54
Pneumatic pressure: 6 bar
Output capacity: 110 pallets per hour
Spare parts and complete machine documentation available.
Code: NP 651
